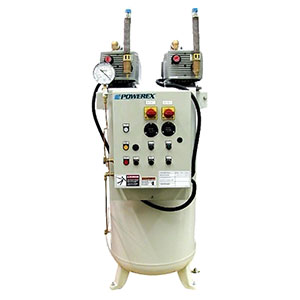

Powerex® Medical Oil-less Vane Open Vacuum Systems


Powerex® Medical Oil-less Vane Open Systems are a cost-effective solution for applications where oil is not desirable. The simple design requires less routine maintenance than an oil-flooded pump and has a lower initial cost compared to other dry pump designs.

Benefits & Features
  • No oil anywhere
  • Long vane life
  • No water and sewage costs
  • Suitable for dedicated waste anesthesia systems
  • Expandable configurations for skid mounted systems up to quadplex
  • Fully compliant with NFPA 99
  • Manufactured in ISO 9001:2015 certified facilities

Duplex Tankmount Model: VVOTD0153, VVOTD0203, VVOTD0303, VVOTD0404, VVOTD0504, VOTD0755, VOTD1006
Duplex Model: VOPD0403, VOPD0503, VOPD0754, VOPD1004
Duplex Expandable Model: VOPD0503-EX3, VOPD0754-EX3, VOPD1004-EX3
Triplex Model: VOPT0503, VOPT0754, VOPT1004
Triplex Expandable Model: VOPT0505-EX4, VOPT0755-EX4, VOPT1005-EX4
Quadplex Model: VOPQ0505, VOPQ0755, VOPQ1005

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
SCFM @ 19" Hg
Tank(gal)
dB(A)
Level
FLA @
208V
FLA @
230V
FLA @
460V
Spec
Sheet
Duplex Tankmount
VVOTD0153
1.5(2)
5.3
80 V
67
10.6
11
6.8
VVOTD0203
2(2)
8
80 V
70
15
14.2
10
VVOTD0303
3(2)
13.5
80 V
76
20
18.8
10.4
VVOTD0404
5(2)
17
120 V
77
30.4
28
15
VVOTD0504
5(2)
20
120 V
16
30.4
28
15
VOTD0755
7.5(2)
30.4
200 H
79
43.8
39.8
47.9
VOTD1006
8.6(2)
56
240 H
79
62
60.8
32.6
Duplex
VOPD0403
5(2)
17
80 V
75
24.8
24.8
12.4
VOPD0503
5(2)
20
80 V
77
31.4
29.6
14.8
VOPD0754
7.5(2)
30.4
120 V
79
43.8
39.8
32.6
VOPD1004
8.6(2)
56
120 V
79
62
60.8
32.6
Duplex Expandable To Triplex
VOPD0503-EX3
5(2)
20
80 V
80
47.1
44.4
22.2

VOPD0754-EX3
7.5(2)
30.4
120 V
82
64.7
58.7
30.5

VOPD1004-EX3
8.6(2)
56
120 V
82
92
90.2
47.9

Triplex
VOPT0503
5(3)
40
80 V
80
47.1
44.4
22.2
VOPT0754
7.5(3)
60.8
120 V
82
64.7
58.7
30.5
VOPT1004
8.6(3)
112
120 V
82
92
90.2
47.9
Triplex Expandable To Quadplex
VOPT0505-EX4
5(3)
40
200 V
82
62.8
59.2
29.6

VOPT0755-EX4
7.5(3)
60.8
200 V
84
85.6
77.6
40

VOPT1005-EX4
8.6(3)
112
200 V
84
122
119.6
63.2

Quadplex
VOPQ0505
5(4)
60
200 V
82
62.8
59.2
29.6
VOPQ0755
7.5(4)
91.2
200 V
84
85.6
77.6
40
VOPQ1005
8.6(4)
168
200 V
84
122
119.6
63.2
